SRP6030CA-4R5M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 4.5UH 7A 25.3 MOHM SMD
- CategoryFixed Inductors
- Datasheet SRP6030CA-4R5M Datasheet
-
ECAD Model
- Share
In Stock: 1,038
Can ship immediately
Pricing:
- 1$2.04
Quote It
Technical Details
- Series:SRP6030CA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Iron Powder
- Inductance:4.5 µH
- Tolerance:±20%
- Current Rating (Amps):7 A
- Current - Saturation (Isat):10A
- Shielding:Shielded
- DC Resistance (DCR):25.3mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:20MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 155°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.260" L x 0.252" W (6.60mm x 6.40mm)
- Height - Seated (Max):0.118" (3.00mm)
Related Products
FIXED IND 6.8UH 1.77A 170 MOHM
VLF504012MT-6R8M-CA Datasheet- 1: $1.88000
- 1000: $ 0.89621
- 3000: $0.86730
FIXED IND 4.7UH 1.83A 120 MOHM
VLF504012MT-4R7M-CA Datasheet- 1: $1.88000
- 1000: $ 0.89621
- 3000: $0.86730
FIXED IND 15UH 1.08A 320 MOHM
VLF504012MT-150M-CA Datasheet- 1: $1.88000
- 1000: $ 0.89621
- 3000: $0.86730
FIXED IND 1.5UH 2.91A 48 MOHM

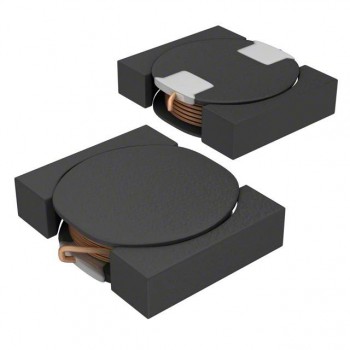

VLF504012MT-1R5N-CA Datasheet- 1: $1.88000
