VLF504012MT-3R3M-CA
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.3UH 2.47A 74 MOHM
- CategoryFixed Inductors
- Datasheet VLF504012MT-3R3M-CA Datasheet
-
ECAD Model
- Share
In Stock: 415
Can ship immediately
Pricing:
- 1$1.88
- 1,000$0.89621
- 3,000$0.8673
- 5,000$0.83839
- 10,000$0.80948
Quote It
Technical Details
- Series:VLF-M-CA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:3.3 µH
- Tolerance:±20%
- Current Rating (Amps):2.47 A
- Current - Saturation (Isat):2.13A
- Shielding:Shielded
- DC Resistance (DCR):74mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.197" L x 0.157" W (5.00mm x 4.00mm)
- Height - Seated (Max):0.047" (1.20mm)
Related Products
FIXED IND 800NH 12.6A 5.4 MOHM
- 1: $1.88000
FIXED IND 100UH 2.3A 160MOHM SMD
- 1: $1.88000
FIXED IND 10UH 8.7A 24.2MOHM SMD
- 1: $1.88000
- 500: $0.98600
- 1000: $0.89900
FIXED IND 1.5UH 8.5A 13.8 MOHM
ASPIAIG-H6530-1R5M-T Datasheet- 1: $1.89000
- 1000: $ 0.77500
- 3000: $0.75000
FIXED IND 4.7UH 5.4A 43.5 MOHM

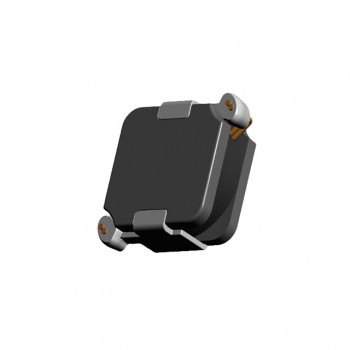

ASPIAIG-H6530-4R7M-T Datasheet- 1: $1.89000
