74456122
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 2.6A 95 MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 748
Can ship immediately
Pricing:
- 1$1.94
- 600$1.355
Quote It
Technical Details
- Series:WE-PD4
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:22 µH
- Tolerance:±20%
- Current Rating (Amps):2.6 A
- Current - Saturation (Isat):3.1A
- Shielding:Unshielded
- DC Resistance (DCR):95mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:14MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.500" L x 0.394" W (12.70mm x 10.00mm)
- Height - Seated (Max):0.209" (5.30mm)
Related Products
FIXED IND 470UH 600MA 1.7 OHM
- 1: $1.94000
- 600: $ 1.35500
FIXED IND 33UH 2.1A 112 MOHM SMD
- 1: $1.94000
- 800: $ 1.27000
FIXED IND 1.5UH 7.2A 7.5 MOHM
- 1: $1.94000
- 800: $ 1.27000
FIXED IND 150NH 60A 0.18MOHM SMD
- 1: $1.94000
FIXED IND 33UH 3A 66 MOHM SMD
- 1: $1.94000
- 300: $ 1.47800
- 600: $1.35500

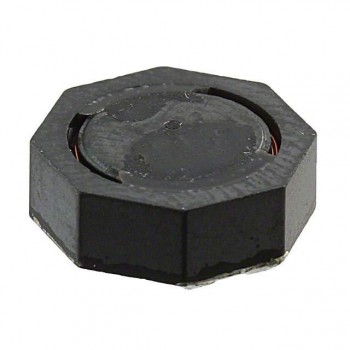

FIXED IND 18UH 2.8A 68 MOHM SMD
- 1: $1.94000
- 800: $ 1.27000

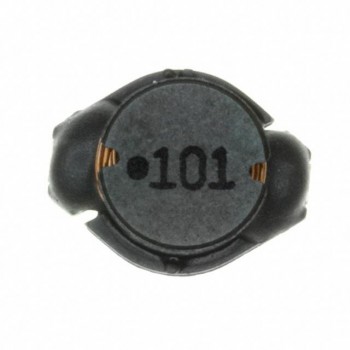

FIXED IND 100UH 1.4A 330 MOHM
- 1: $1.94000
- 10: $1.84800
- 50: $1.72500

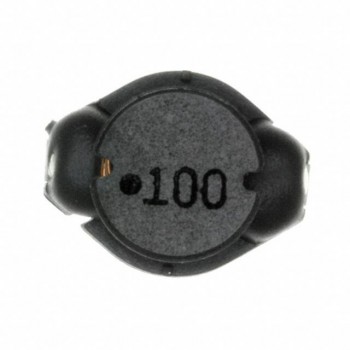

FIXED IND 10UH 3.3A 45 MOHM SMD
- 1: $1.94000
- 600: $ 1.35500

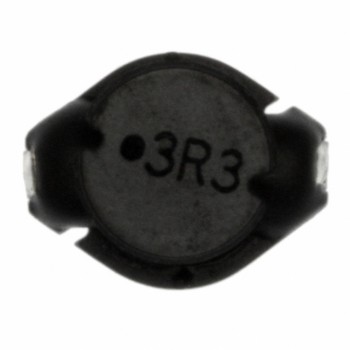

FIXED IND 3.3UH 5.3A 15 MOHM SMD
