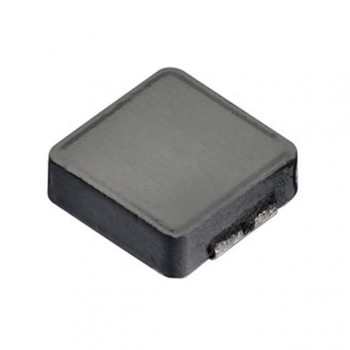

744373560082
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 820NH 13.5A 4.87 MOHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 718
Can ship immediately
Pricing:
- 1$2.08
- 1,000$1.317
Quote It
Technical Details
- Series:WE-LHMI
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Molded
- Material - Core:Iron Powder
- Inductance:820 nH
- Tolerance:±20%
- Current Rating (Amps):13.5 A
- Current - Saturation (Isat):30.5A
- Shielding:Shielded
- DC Resistance (DCR):4.87mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:51MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:8030
- Size / Dimension:0.362" L x 0.335" W (9.20mm x 8.50mm)
- Height - Seated (Max):0.118" (3.00mm)
