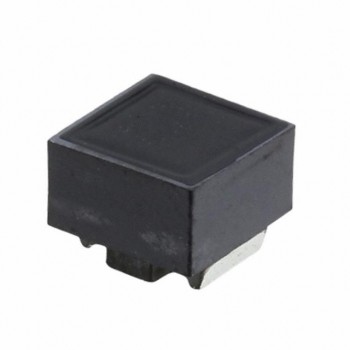

LQH66SN331M03L
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 330UH 280MA 2.52 OHM
- CategoryFixed Inductors
- Datasheet LQH66SN331M03L Datasheet
-
ECAD Model
- Share
In Stock: 288
Can ship immediately
Pricing:
- 1$2.1
- 350$1.1646
- 700$1.0999
- 1,050$1.00285
- 3,500$0.9705
- 8,750$0.93815
Quote It
Technical Details
- Series:LQH66
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:330 µH
- Tolerance:±20%
- Current Rating (Amps):280 mA
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):2.52Ohm Max
- Q @ Freq:-
- Frequency - Self Resonant:3.2MHz
- Ratings:-
- Operating Temperature:-40°C ~ 80°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:2525 (6363 Metric)
- Size / Dimension:0.248" L x 0.248" W (6.30mm x 6.30mm)
- Height - Seated (Max):0.197" (5.00mm)
