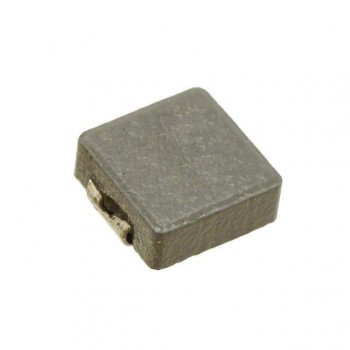

MPXV1D0630LR10
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 100NH 31.1A 1.5 MOHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 1,134
Can ship immediately
Pricing:
- 1$2.32
Quote It
Technical Details
- Series:MPXV
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:-
- Material - Core:Metal Composite
- Inductance:100 nH
- Tolerance:±20%
- Current Rating (Amps):31.1 A
- Current - Saturation (Isat):50A
- Shielding:Shielded
- DC Resistance (DCR):1.5mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:200MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 155°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.276" L x 0.256" W (7.00mm x 6.50mm)
- Height - Seated (Max):0.118" (3.00mm)
