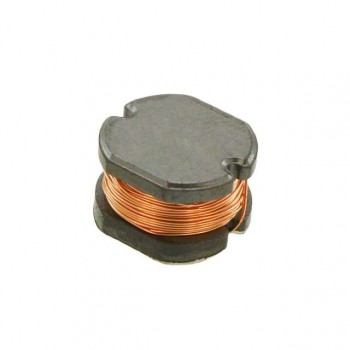

7447779233
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 330UH 390MA 1.86 OHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 810
Can ship immediately
Pricing:
- 1$2.22
- 1,000$1.552
Quote It
Technical Details
- Series:WE-PD Robust
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:330 µH
- Tolerance:±20%
- Current Rating (Amps):390 mA
- Current - Saturation (Isat):450mA
- Shielding:Shielded
- DC Resistance (DCR):1.86Ohm Max
- Q @ Freq:-
- Frequency - Self Resonant:4MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:7345
- Size / Dimension:0.287" L x 0.287" W (7.30mm x 7.30mm)
- Height - Seated (Max):0.177" (4.50mm)
