744770256
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 560UH 800MA 1.07 OHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 340
Can ship immediately
Pricing:
- 1$2.25
- 500$1.39
- 1,000$1.25
Quote It
Technical Details
- Series:WE-PD
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:560 µH
- Tolerance:±20%
- Current Rating (Amps):800 mA
- Current - Saturation (Isat):900mA
- Shielding:Shielded
- DC Resistance (DCR):1.07Ohm Max
- Q @ Freq:-
- Frequency - Self Resonant:2.5MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.472" L x 0.472" W (12.00mm x 12.00mm)
- Height - Seated (Max):0.315" (8.00mm)
Related Products
FIXED IND 47UH 850MA 360 MOHM
- 1: $2.25000
- 1000: $ 1.62600
FIXED IND 100UH 700MA 540 MOHM
- 1: $2.25000
- 1000: $ 1.62600
FIXED IND 750NH 19.8A 4 MOHM SMD
- 1: $2.25000
- 500: $ 1.39000
FIXED IND 2.2UH 6.1A 12 MOHM SMD

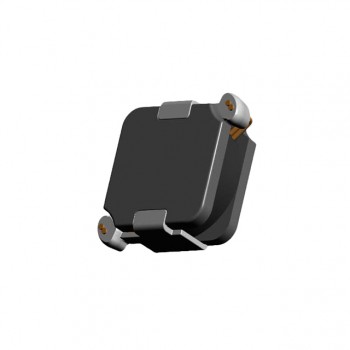

ASPIAIG-H8540-2R2M-T Datasheet- 1: $2.28000
