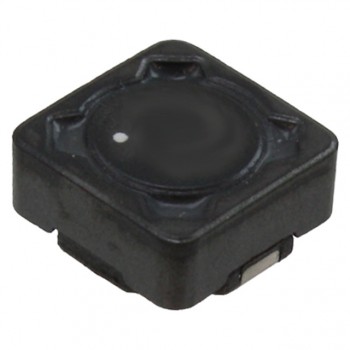

MPXV1D1054L2R2
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 18A 5.41MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 352
Can ship immediately
Pricing:
- 1$2.58
Quote It
Technical Details
- Series:MPXV
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:-
- Material - Core:Metal Composite
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):18 A
- Current - Saturation (Isat):16.5A
- Shielding:Shielded
- DC Resistance (DCR):5.41mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:21MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 155°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.425" L x 0.394" W (10.80mm x 10.00mm)
- Height - Seated (Max):0.213" (5.40mm)
