SPM10040T-220M-HZ
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 5.2A 78.94 MOHM
- CategoryFixed Inductors
- Datasheet SPM10040T-220M-HZ Datasheet
-
ECAD Model
- Share
In Stock: 874
Can ship immediately
Pricing:
- 1$2.62
Quote It
Technical Details
- Series:SPM-HZ
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Metal
- Inductance:22 µH
- Tolerance:±20%
- Current Rating (Amps):5.2 A
- Current - Saturation (Isat):3.4A
- Shielding:Shielded
- DC Resistance (DCR):78.94mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.421" L x 0.394" W (10.70mm x 10.00mm)
- Height - Seated (Max):0.157" (4.00mm)
Related Products
FIXED IND 8MH 350MA 8 OHM SMD
- 1: $2.38000
- 200: $ 1.85500
FIXED IND 1.2MH 350MA 3 OHM SMD
- 1: $2.39000
- 500: $ 1.67600
FIXED IND 1MH 380MA 2.6 OHM SMD
- 1: $2.39000
- 500: $ 1.67600
FIXED IND 220NH 7.7A 8 MOHM SMD
- 1: $2.39000
- 4000: $ 1.51200
FIXED IND 6.8UH 2.8A 44.76 MOHM
RLF7030T-6R8M2R8-T Datasheet- 1: $2.64000
- 1000: $1.25829
- 3000: $1.21770
FIXED IND 2.2UH 5.4A 12 MOHM SMD

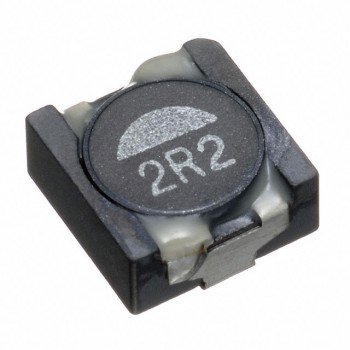

RLF7030T-2R2M5R4-T Datasheet- 1: $2.64000
