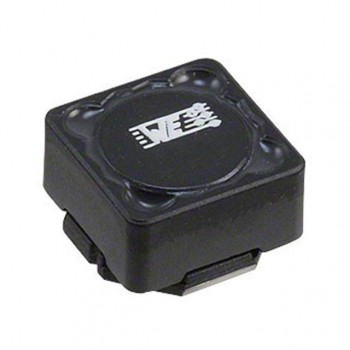

7843340220
Würth Elektronik Midcom
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 8.4A 12MOHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 479
Can ship immediately
Pricing:
- 1$2.55
Quote It
Technical Details
- Series:WE-CHSA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):8.4 A
- Current - Saturation (Isat):14.7A
- Shielding:Shielded
- DC Resistance (DCR):12mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:67MHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 150°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:8090
- Size / Dimension:0.319" L x 0.319" W (8.10mm x 8.10mm)
- Height - Seated (Max):0.366" (9.30mm)
