B82559A0112A013
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.1UH 20A 1.72 MOHM
- CategoryFixed Inductors
- Datasheet B82559A0112A013 Datasheet
-
ECAD Model
- Share
In Stock: 651
Can ship immediately
Pricing:
- 1$2.86
- 750$1.5232
- 1,500$1.4756
- 3,750$1.428
- 5,250$1.3804
Quote It
Technical Details
- Series:ERU13 - Flat Wire Inductor
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1.1 µH
- Tolerance:±10%
- Current Rating (Amps):20 A
- Current - Saturation (Isat):20A
- Shielding:Shielded
- DC Resistance (DCR):1.72mOhm
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 130°C
- Inductance Frequency - Test:10 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.512" L x 0.421" W (13.00mm x 10.70mm)
- Height - Seated (Max):0.195" (4.95mm)
Related Products
FIXED IND 2.2UH 16.6A 4.6 MOHM
- 1: $2.88000

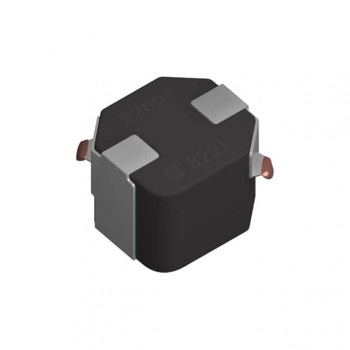

FIXED IND 1UH 22.9A 2.64OHM SMD
- 1: $2.88000
FIXED IND 15UH 6.5A 32.7MOHM SMD
- 1: $3.17000

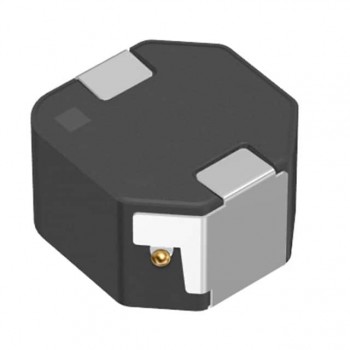

FIXED IND 4.7UH 11.7A 9.2 MOHM
- 1: $3.17000

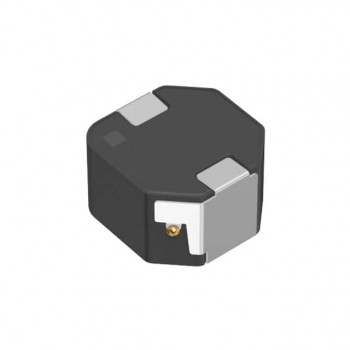

FIXED IND 33UH 4.9A 59 MOHM SMD
