SRP1265A-220M
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 9A 37 MOHM SMD
- CategoryFixed Inductors
- Datasheet SRP1265A-220M Datasheet
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
- 1$2.06
- 500$0.87085
- 1,000$0.80154
Quote It
Technical Details
- Series:SRP1265A
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Carbonyl Powder
- Inductance:22 µH
- Tolerance:±20%
- Current Rating (Amps):9 A
- Current - Saturation (Isat):12A
- Shielding:Shielded
- DC Resistance (DCR):37mOhm Max
- Q @ Freq:20 @ 100kHz
- Frequency - Self Resonant:6MHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 150°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.531" L x 0.492" W (13.50mm x 12.50mm)
- Height - Seated (Max):0.256" (6.50mm)
Related Products

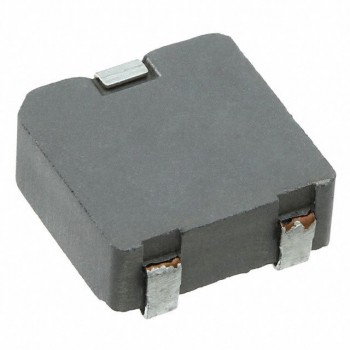

FIXED IND 6.1UH 11A 7.8 MOHM SMD
