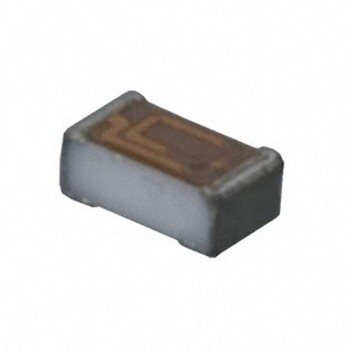

LQG15WH6N8J02D
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 6.8NH 700MA 140 MOHM
- CategoryFixed Inductors
- Datasheet LQG15WH6N8J02D Datasheet
-
ECAD Model
- Share
In Stock: 125
Can ship immediately
Pricing:
- 1$0.15
- 10,000$0.048
- 30,000$0.0465
- 50,000$0.045
- 100,000$0.0435
Quote It
Technical Details
- Series:LQG15
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Multilayer
- Material - Core:Air
- Inductance:6.8 nH
- Tolerance:±5%
- Current Rating (Amps):700 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):140mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:4GHz
- Ratings:AEC-Q200
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
- Height - Seated (Max):0.020" (0.51mm)
