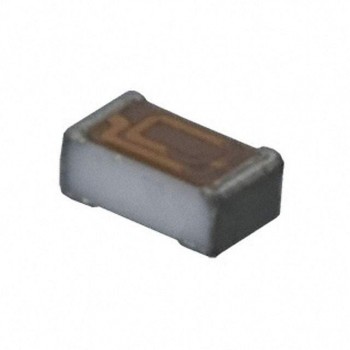

LQP15MN3N0B02D
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3NH 190MA 400 MOHM SMD
- CategoryFixed Inductors
- Datasheet LQP15MN3N0B02D Datasheet
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
- 1$0.18
- 10,000$0.05658
- 30,000$0.05482
- 50,000$0.05305
- 100,000$0.05128
Quote It
Technical Details
- Series:LQP15
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Type:Thick Film
- Material - Core:Non-Magnetic
- Inductance:3 nH
- Tolerance:±0.1nH
- Current Rating (Amps):190 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):400mOhm Max
- Q @ Freq:13 @ 500MHz
- Frequency - Self Resonant:6GHz
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:500 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.018" (0.45mm)
Related Products

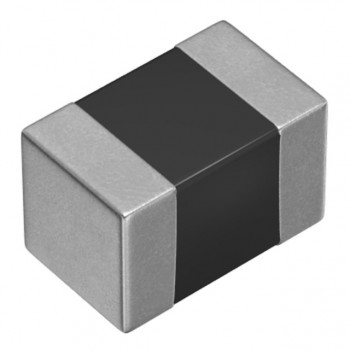

FIXED IND 68NH 180MA 2.1 OHM SMD
