IMC0805ER1R0J01
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1UH 180MA 2.13 OHM SMD
- CategoryFixed Inductors
- Datasheet IMC0805ER1R0J01 Datasheet
-
ECAD Model
- Share
In Stock: 103
Can ship immediately
Pricing:
- 1$0.31
- 2,000$0.1224
- 4,000$0.1156
- 6,000$0.1088
- 10,000$0.1054
- 50,000$0.0986
- 100,000$0.0952
Quote It
Technical Details
- Series:IMC-0805-01
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1 µH
- Tolerance:±5%
- Current Rating (Amps):180 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):2.13Ohm Max
- Q @ Freq:35 @ 50MHz
- Frequency - Self Resonant:200MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:25.2 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805 (2012 Metric)
- Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):0.055" (1.40mm)
Related Products

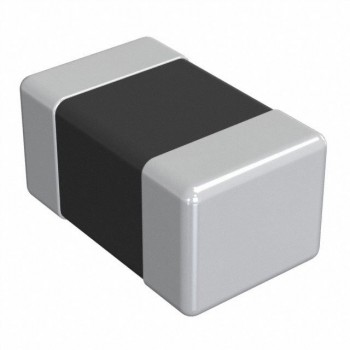

FIXED IND 2.2UH 3.1A 45MOHM SMD
