LQH43CN220K03L
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 420MA 600 MOHM
- CategoryFixed Inductors
- Datasheet LQH43CN220K03L Datasheet
-
ECAD Model
- Share
In Stock: 211
Can ship immediately
Pricing:
- 1$0.43
- 500$0.22344
- 1,000$0.18088
- 2,500$0.17024
- 5,000$0.16492
- 12,500$0.1596
- 25,000$0.15428
- 50,000$0.14896
Quote It
Technical Details
- Series:LQH43
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:22 µH
- Tolerance:±10%
- Current Rating (Amps):420 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):600mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:15MHz
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:1 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1812 (4532 Metric)
- Supplier Device Package:1812
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.110" (2.80mm)
Related Products
FIXED IND 1.5UH 4.5A 15 MOHM SMD
- 1: $0.55000

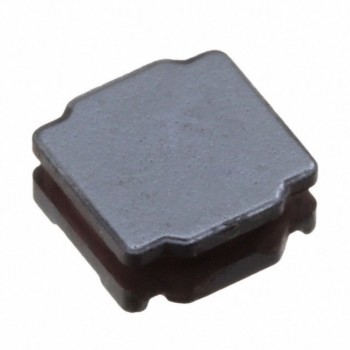

FIXED IND 22UH 1.5A 123 MOHM SMD
