B82498F3220J000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22NH 700MA 80 MOHM SMD
- CategoryFixed Inductors
- Datasheet B82498F3220J000 Datasheet
-
ECAD Model
- Share
In Stock: 175
Can ship immediately
Pricing:
- 1$0.74
- 3,000$0.3054
- 6,000$0.29586
- 15,000$0.28631
- 30,000$0.27677
Quote It
Technical Details
- Series:SIMID
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ceramic
- Inductance:22 nH
- Tolerance:±5%
- Current Rating (Amps):700 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):80mOhm Max
- Q @ Freq:60 @ 500MHz
- Frequency - Self Resonant:2.5GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:250 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:0805 (2012 Metric)
- Size / Dimension:0.091" L x 0.067" W (2.30mm x 1.70mm)
- Height - Seated (Max):0.055" (1.40mm)
Related Products
FIXED IND 1UH 3A 50 MOHM SMD
- 1: $0.75000
FIXED IND 2.2UH 1.9A 101 MOHM
- 1: $0.75000
FIXED IND 3.3UH 210MA 2.3 OHM
- 1: $0.44000
- 2000: $ 0.27700
FIXED IND 1.2UH 760MA 500 MOHM
- 1: $0.44000
- 2000: $ 0.27700

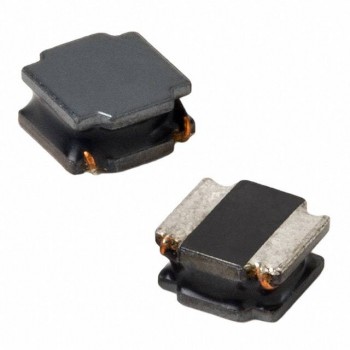

FIXED IND 820NH 5.9A 8 MOHM SMD
