ASPI-6045S-220M-T
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 22UH 1.8A 89 MOHM SMD
- CategoryFixed Inductors
- Datasheet ASPI-6045S-220M-T Datasheet
-
ECAD Model
- Share
In Stock: 139
Can ship immediately
Pricing:
- 1$0.65
- 1,500$0.255
- 3,000$0.24
- 7,500$0.2325
- 10,500$0.225
- 37,500$0.2175
Quote It
Technical Details
- Series:ASPI-6045S
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:22 µH
- Tolerance:±20%
- Current Rating (Amps):1.8 A
- Current - Saturation (Isat):2.05A
- Shielding:Shielded
- DC Resistance (DCR):89mOhm
- Q @ Freq:-
- Frequency - Self Resonant:10MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.236" L x 0.236" W (6.00mm x 6.00mm)
- Height - Seated (Max):0.177" (4.50mm)
Related Products
FIXED IND 2.2UH 2.6A 47 MOHM SMD
1227AS-H-2R2M=P2 Datasheet- 1: $0.65000
- 2000: $ 0.27761
- 4000: $0.26128

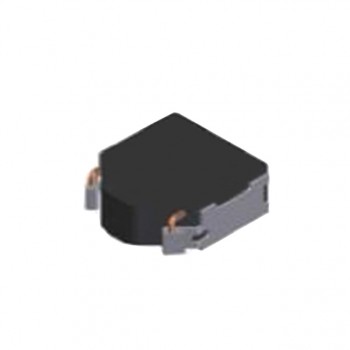

FIXED IND 10UH 2.4A 150 MOHM SMD
FDSD0518-H-100M=P3 Datasheet- 1: $0.69000
- 2000: $0.42682
- 4000: $0.41349

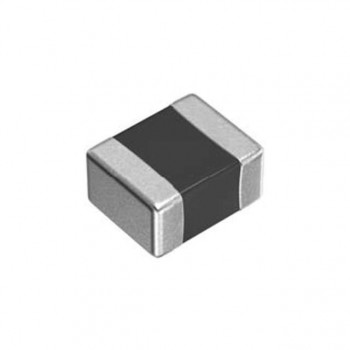

FIXED IND 470NH 3.9A 39 MOHM SMD
