CDRH3D14NP-2R2NC
Sumida Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 1.75A 69 MOHM
- CategoryFixed Inductors
- Datasheet CDRH3D14NP-2R2NC Datasheet
-
ECAD Model
- Share
In Stock: 195
Can ship immediately
Pricing:
- 1$0.72
- 1,000$0.306
- 3,000$0.288
- 5,000$0.279
- 10,000$0.27
- 25,000$0.261
Quote It
Technical Details
- Series:CDRH3D14
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:-
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±25%
- Current Rating (Amps):1.75 A
- Current - Saturation (Isat):1.6A
- Shielding:Shielded
- DC Resistance (DCR):69mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:-
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:100 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.150" L x 0.150" W (3.80mm x 3.80mm)
- Height - Seated (Max):0.059" (1.50mm)
Related Products

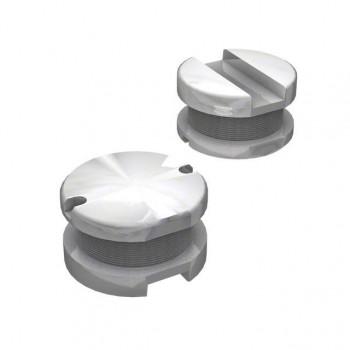

FIXED IND 2.5UH 1.25A 170 MOHM
