MLG0603S15NJT000
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 15NH 180MA 1.1 OHM SMD
- CategoryFixed Inductors
- Datasheet MLG0603S15NJT000 Datasheet
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
- 1$0.1
- 10$0.09
- 100$0.062
- 500$0.05297
- 1,000$0.04057
- 2,500$0.03832
Quote It
Technical Details
- Series:MLG
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Multilayer
- Material - Core:Ceramic, Non-Magnetic
- Inductance:15 nH
- Tolerance:±5%
- Current Rating (Amps):180 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1.1Ohm Max
- Q @ Freq:6 @ 100MHz
- Frequency - Self Resonant:2.5GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0201 (0603 Metric)
- Supplier Device Package:0201 (0603 Metric)
- Size / Dimension:0.024" L x 0.012" W (0.60mm x 0.30mm)
- Height - Seated (Max):0.013" (0.33mm)
Related Products
FIXED IND 150NH 50MA 8 OHM SMD
MLG0603SR15JT000 Datasheet- 1: $0.10000
- 15000: $ 0.02400
- 30000: $0.02325
FIXED IND 10NH 140MA 2.5 OHM SMD
LQP02TN10NH02D Datasheet- 1: $0.10000
- 20000: $ 0.02720
- 40000: $0.02635
FIXED IND 56NH 50MA 300 MOHM SMD
AIML-0603-56NK-T Datasheet- 1: $0.10000
- 4000: $ 0.03060
- 8000: $0.02890

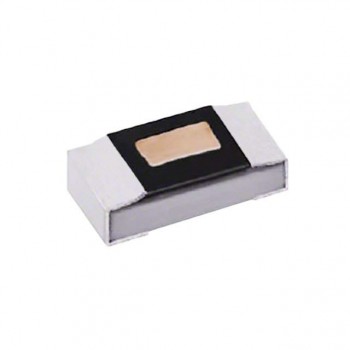

FIXED IND 2.5NH 440MA 350 MOHM
