LQW18CNR12J00D
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 120NH 1.1A 85 MOHM SMD
- CategoryFixed Inductors
- Datasheet LQW18CNR12J00D Datasheet
-
ECAD Model
- Share
In Stock: 118
Can ship immediately
Pricing:
- 1$0.49
- 4,000$0.19617
- 8,000$0.19004
- 12,000$0.18391
- 28,000$0.17778
Quote It
Technical Details
- Series:LQW18
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:120 nH
- Tolerance:±5%
- Current Rating (Amps):1.1 A
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):85mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:1.2GHz
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:10 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603 (1608 Metric)
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.037" (0.95mm)
Related Products

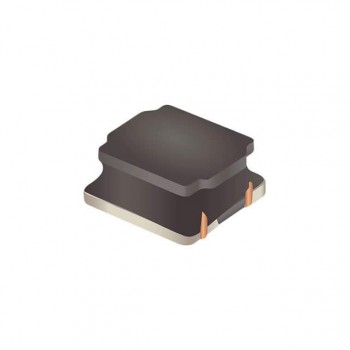

FIXED IND 3.3UH 2.8A 43 MOHM SMD
