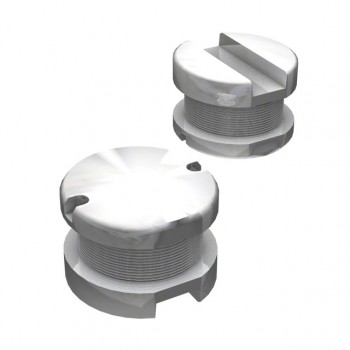

SDR0503-330KL
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 33UH 700MA 380MOHM SMD
- CategoryFixed Inductors
- Datasheet SDR0503-330KL Datasheet
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
- 1$0.62
- 500$0.2499
- 1,000$0.2023
- 2,500$0.1904
- 5,000$0.1862
Quote It
Technical Details
- Series:SDR0503
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:33 µH
- Tolerance:±10%
- Current Rating (Amps):700 mA
- Current - Saturation (Isat):850mA
- Shielding:Unshielded
- DC Resistance (DCR):380mOhm Max
- Q @ Freq:15 @ 2.52MHz
- Frequency - Self Resonant:18MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.197" L x 0.189" W (5.00mm x 4.80mm)
- Height - Seated (Max):0.130" (3.30mm)
