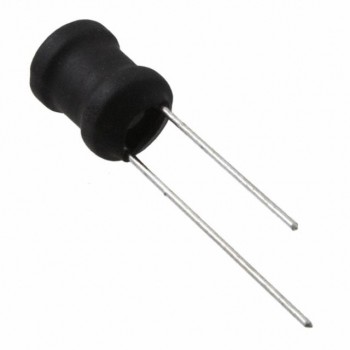

RLB9012-273KL
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 27MH 100MA 82.7 OHM TH
- CategoryFixed Inductors
- Datasheet RLB9012-273KL Datasheet
-
ECAD Model
- Share
In Stock: 236
Can ship immediately
Pricing:
- 1$0.79
- 10$0.69416
- 100$0.49537
- 500$0.41611
- 1,000$0.33685
- 2,500$0.31704
Quote It
Technical Details
- Series:RLB9012
- Package:Bulk
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:27 mH
- Tolerance:±10%
- Current Rating (Amps):100 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):82.7Ohm Max
- Q @ Freq:15 @ 79kHz
- Frequency - Self Resonant:190kHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:0.354" Dia (9.00mm)
- Height - Seated (Max):0.480" (12.20mm)
