S1812R-222K
API Delevan
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 658MA 460 MOHM
- CategoryFixed Inductors
- Datasheet S1812R-222K Datasheet
-
ECAD Model
- Share
In Stock: 123
Can ship immediately
Pricing:
- 1$2.85
- 500$1.0268
- 1,000$0.9362
- 2,500$0.906
- 5,000$0.8758
Quote It
Technical Details
- Series:S1812R
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:-
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±10%
- Current Rating (Amps):658 mA
- Current - Saturation (Isat):-
- Shielding:Shielded
- DC Resistance (DCR):460mOhm Max
- Q @ Freq:40 @ 7.9MHz
- Frequency - Self Resonant:90MHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:7.9 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1812 (4532 Metric)
- Supplier Device Package:1812
- Size / Dimension:0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):0.134" (3.40mm)
Related Products

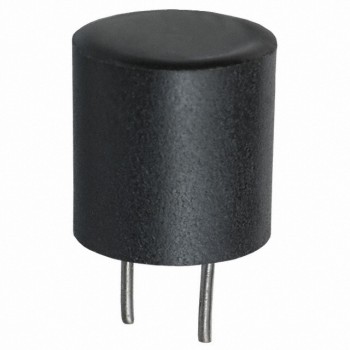

FIXED IND 4.7MH 230MA 7 OHM TH
- 1: $1.71000
- 10: $1.62400
- 50: $1.51200

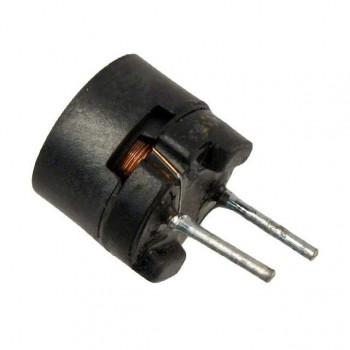

FIXED IND 1MH 420MA 2.5 OHM TH
- 1: $1.74000
- 10: $1.65600
- 50: $1.54200

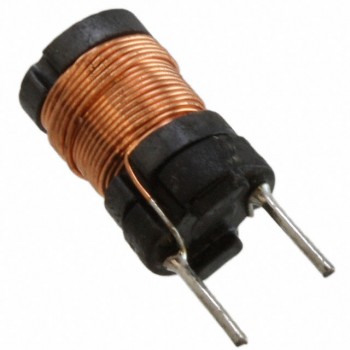

FIXED IND 68MH 50MA 106 OHM TH
