PM54-180M-RC
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 18UH 1.25A 150MOHM SMD
- CategoryFixed Inductors
- Datasheet PM54-180M-RC Datasheet
-
ECAD Model
- Share
In Stock: 203
Can ship immediately
Pricing:
- 1$1.02
- 1,500$0.3944
- 3,000$0.3857
Quote It
Technical Details
- Series:PM54
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:18 µH
- Tolerance:±20%
- Current Rating (Amps):1.25 A
- Current - Saturation (Isat):1.5A
- Shielding:Unshielded
- DC Resistance (DCR):150mOhm
- Q @ Freq:30 @ 2.52MHz
- Frequency - Self Resonant:18MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:1 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.228" L x 0.228" W (5.80mm x 5.80mm)
- Height - Seated (Max):0.189" (4.80mm)
Related Products
FIXED IND 3.3UH 2.1A 54 MOHM SMD
CDRH2D18/LDNP-3R3NC Datasheet- 1: $1.02000
- 1000: $ 0.46400
- 3000: $0.44950
FIXED IND 6.8UH 1.3A 260 MOHM
ASPI-0310FS-6R8M-T2 Datasheet- 1: $1.04000
- 2000: $ 0.18700
- 4000: $0.17600

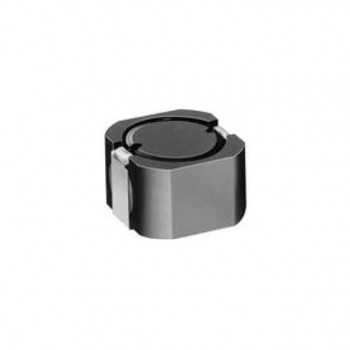

FIXED IND 3.9UH 4.6A 18 MOHM SMD
