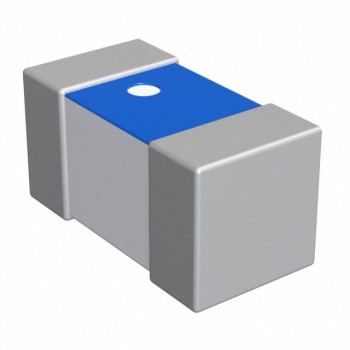

LQP03TG11NJ02D
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 11NH 180MA 1.65 OHM
- CategoryFixed Inductors
- Datasheet LQP03TG11NJ02D Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
- 1$0.0085
- 5,000$0.0085
- 10,000$0.00803
- 25,000$0.00756
- 50,000$0.00732
- 125,000$0.00708
Quote It
Technical Details
- Series:LQP03
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Thick Film
- Material - Core:Non-Magnetic
- Inductance:11 nH
- Tolerance:±5%
- Current Rating (Amps):180 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1.65Ohm Max
- Q @ Freq:11 @ 500MHz
- Frequency - Self Resonant:4.1GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:500 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0201 (0603 Metric)
- Supplier Device Package:0201 (0603 Metric)
- Size / Dimension:0.024" L x 0.012" W (0.60mm x 0.30mm)
- Height - Seated (Max):0.013" (0.33mm)
