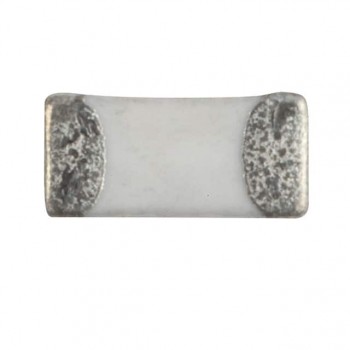

MCL1608V2-181-R
PowerStor (Eaton)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 180NH 200MA 1.9 OHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 128
Can ship immediately
Pricing:
- 1$0.02741
Quote It
Technical Details
- Series:MCL1608V2
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Multilayer
- Material - Core:-
- Inductance:180 nH
- Tolerance:±5%
- Current Rating (Amps):200 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1.9Ohm Max
- Q @ Freq:8 @ 100MHz
- Frequency - Self Resonant:400MHz
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.039" (1.00mm)
Related Products
FIXED IND 120NH 200MA 1.4 OHM
- 1: $0.02741
FIXED IND 3.9NH 500MA 160 MOHM
- 1: $0.02741
FIXED IND 470NH 100MA 450 MOHM
- 1: $0.02741
FIXED IND 68NH 300MA 850 MOHM
- 1: $0.02741
FIXED IND 27NH 300MA 650 MOHM
- 1: $0.02741
FIXED IND 560NH 100MA 450 MOHM
- 1: $0.02741
FIXED IND 2.2NH 500MA 100 MOHM
- 1: $0.02741
FIXED IND 220NH 200MA 2.4 OHM
- 1: $0.02741
FIXED IND 180NH 150MA 200 MOHM
- 1: $0.02741

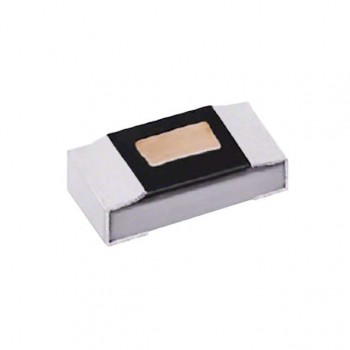

FIXED IND 3.1NH 500MA 200 MOHM
