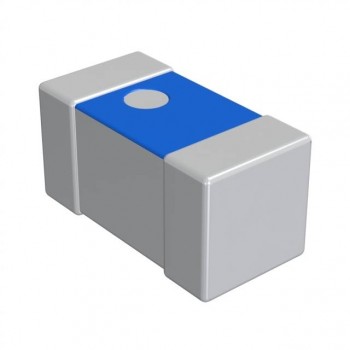

LQP02TN0N7B02D

Technical Details

• Series:LQP02
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Thick Film
• Material - Core:Non-Magnetic
• Inductance:0.7 nH
• Tolerance:±0.1nH
• Current Rating (Amps):320 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):500mOhm Max

• Q @ Freq:8 @ 500MHz
• Frequency - Self Resonant:6GHz
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:500 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:01005 (0402 Metric)
• Supplier Device Package:01005 (0402 Metric)
• Size / Dimension:0.016" L x 0.008" W (0.40mm x 0.20mm)
• Height - Seated (Max):0.009" (0.23mm)
