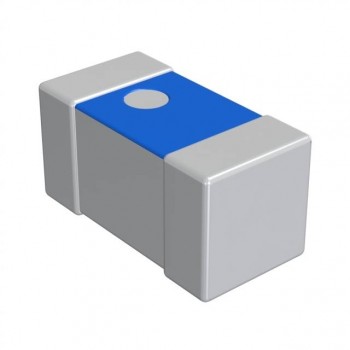

LQP02TN3N8C02D
TOKO / Murata
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.8NH 180MA 1.3 OHM
- CategoryFixed Inductors
- Datasheet LQP02TN3N8C02D Datasheet
-
ECAD Model
- Share
In Stock: 148
Can ship immediately
Pricing:
- 1$0.02856
- 20,000$0.02856
Quote It
Technical Details
- Series:LQP02
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Thick Film
- Material - Core:Non-Magnetic
- Inductance:3.8 nH
- Tolerance:±0.2nH
- Current Rating (Amps):180 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1.3Ohm Max
- Q @ Freq:8 @ 500MHz
- Frequency - Self Resonant:6GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:500 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:01005 (0402 Metric)
- Supplier Device Package:01005 (0402 Metric)
- Size / Dimension:0.016" L x 0.008" W (0.40mm x 0.20mm)
- Height - Seated (Max):0.009" (0.23mm)
