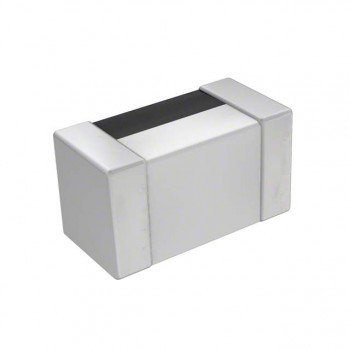

MLG0402Q1N4ST000

Technical Details

• Series:MLG-Q
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Type:Multilayer
• Material - Core:Non-Magnetic
• Inductance:1.4 nH
• Tolerance:±0.3nH
• Current Rating (Amps):250 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):600mOhm Max

• Q @ Freq:2 @ 100MHz
• Frequency - Self Resonant:10GHz
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:100 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:01005 (0402 Metric)
• Supplier Device Package:01005 (0402 Metric)
• Size / Dimension:0.016" L x 0.008" W (0.40mm x 0.20mm)
• Height - Seated (Max):0.009" (0.22mm)
