MLG0402P5N6ST000
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 5.6NH 140MA 1.5 OHM
- CategoryFixed Inductors
- Datasheet MLG0402P5N6ST000 Datasheet
-
ECAD Model
- Share
In Stock: 133
Can ship immediately
Pricing:
- 1$0.02873
- 20,000$0.02873
Quote It
Technical Details
- Series:MLG-P
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Multilayer
- Material - Core:Non-Magnetic
- Inductance:5.6 nH
- Tolerance:±0.3nH
- Current Rating (Amps):140 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):1.5Ohm Max
- Q @ Freq:8 @ 500MHz
- Frequency - Self Resonant:5GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:500 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:01005 (0402 Metric)
- Supplier Device Package:01005 (0402 Metric)
- Size / Dimension:0.016" L x 0.008" W (0.40mm x 0.20mm)
- Height - Seated (Max):0.009" (0.22mm)
Related Products
FIXED IND 1NH 600MA 150 MOHM SMD

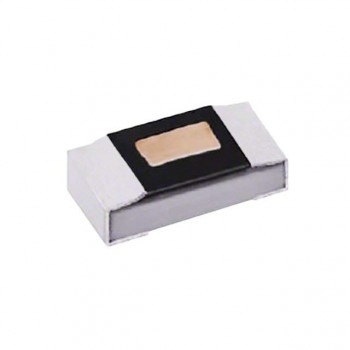

ATFC-0201HQ-1N0B-T Datasheet- 1: $0.02765
