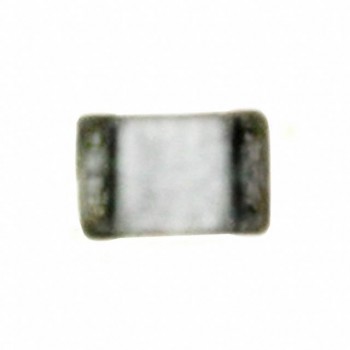

AQ10512NJ-T

Technical Details

• Series:AQ
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Multilayer
• Material - Core:-
• Inductance:12 nH
• Tolerance:±5%
• Current Rating (Amps):390 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):390mOhm Max

• Q @ Freq:8 @ 100MHz
• Frequency - Self Resonant:2.7GHz
• Ratings:-
• Operating Temperature:-55°C ~ 85°C
• Inductance Frequency - Test:100 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:0402 (1005 Metric)
• Supplier Device Package:0402 (1005 Metric)
• Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
• Height - Seated (Max):0.020" (0.50mm)
