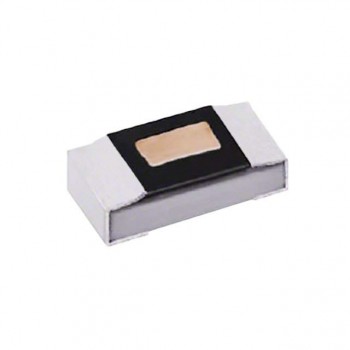

ATFC-0402-1N3B-T
Abracon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.3NH 700MA 250 MOHM
- CategoryFixed Inductors
- Datasheet ATFC-0402-1N3B-T Datasheet
-
ECAD Model
- Share
In Stock: 100
Can ship immediately
Pricing:
- 1$0.03072
- 10,000$0.03072
- 30,000$0.02976
- 50,000$0.0288
- 100,000$0.02784
Quote It
Technical Details
- Series:ATFC-0402
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Thin Film
- Material - Core:Ceramic
- Inductance:1.3 nH
- Tolerance:±0.1nH
- Current Rating (Amps):700 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):250mOhm Max
- Q @ Freq:13 @ 500MHz
- Frequency - Self Resonant:10GHz
- Ratings:-
- Operating Temperature:-45°C ~ 85°C
- Inductance Frequency - Test:500 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.015" (0.37mm)
