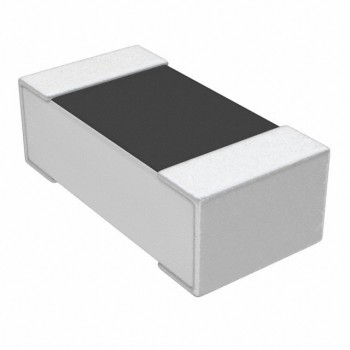

ATFC-0201-1N2B-T

Technical Details

• Series:ATFC-0201
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Type:Thin Film
• Material - Core:Ceramic
• Inductance:1.2 nH
• Tolerance:±0.1nH
• Current Rating (Amps):300 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):350mOhm Max

• Q @ Freq:8 @ 500MHz
• Frequency - Self Resonant:9GHz
• Ratings:-
• Operating Temperature:-25°C ~ 85°C
• Inductance Frequency - Test:500 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:0201 (0603 Metric)
• Supplier Device Package:0201 (0603 Metric)
• Size / Dimension:0.024" L x 0.012" W (0.60mm x 0.30mm)
• Height - Seated (Max):0.011" (0.28mm)
