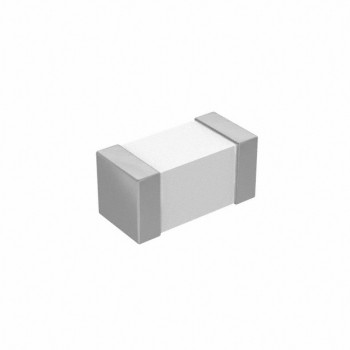

ILC0603ER27NJ

Technical Details

• Series:ILC-0603
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Multilayer
• Material - Core:Ceramic
• Inductance:27 nH
• Tolerance:±5%
• Current Rating (Amps):300 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):450mOhm Max

• Q @ Freq:12 @ 100MHz
• Frequency - Self Resonant:1.5GHz
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:100 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:0603 (1608 Metric)
• Supplier Device Package:0603 (1608 Metric)
• Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
• Height - Seated (Max):0.037" (0.95mm)
