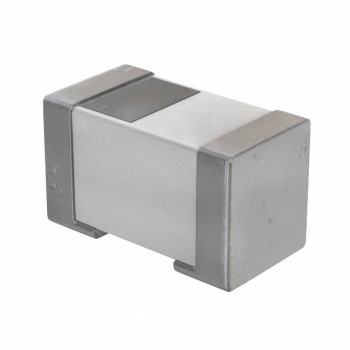

MHQ1005P3N9BT000
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 3.9NH 900MA 90 MOHM
- CategoryFixed Inductors
- Datasheet MHQ1005P3N9BT000 Datasheet
-
ECAD Model
- Share
In Stock: 195
Can ship immediately
Pricing:
- 1$0.06569
- 10,000$0.05746
Quote It
Technical Details
- Series:MHQ-P
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Multilayer
- Material - Core:Ceramic, Non-Magnetic
- Inductance:3.9 nH
- Tolerance:±0.1nH
- Current Rating (Amps):900 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):90mOhm Max
- Q @ Freq:23 @ 250MHz
- Frequency - Self Resonant:5GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
- Height - Seated (Max):0.024" (0.60mm)
