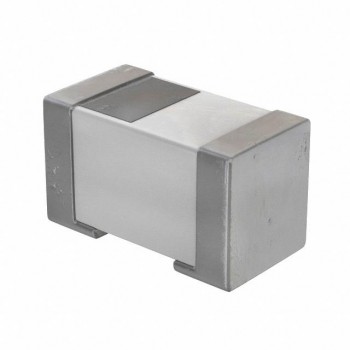

MHQ1005P56NHT000

Technical Details

• Series:MHQ-P
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Multilayer
• Material - Core:Ceramic, Non-Magnetic
• Inductance:56 nH
• Tolerance:±3%
• Current Rating (Amps):180 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):1.8Ohm Max

• Q @ Freq:22 @ 250MHz
• Frequency - Self Resonant:1.2GHz
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:100 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:0402 (1006 Metric)
• Supplier Device Package:1006 (0402)
• Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
• Height - Seated (Max):0.024" (0.60mm)
