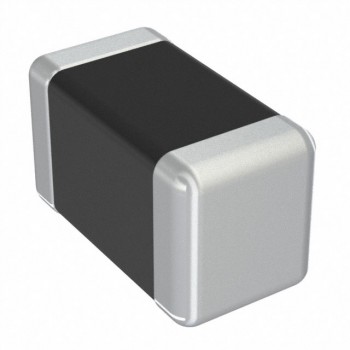

LB3218T101M

Technical Details

• Series:LB
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Wirewound
• Material - Core:-
• Inductance:100 µH
• Tolerance:±20%
• Current Rating (Amps):140 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):2.4Ohm

• Q @ Freq:-
• Frequency - Self Resonant:8MHz
• Ratings:-
• Operating Temperature:-40°C ~ 105°C
• Inductance Frequency - Test:796 kHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:1207 (3218 Metric)
• Supplier Device Package:1207 (3218 Metric)
• Size / Dimension:0.126" L x 0.071" W (3.20mm x 1.80mm)
• Height - Seated (Max):0.079" (2.00mm)
