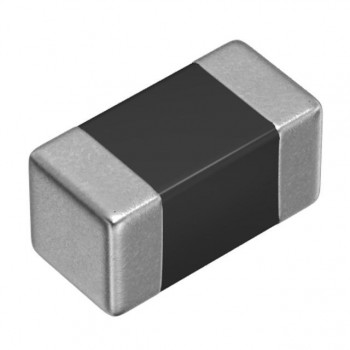

MLF1005LR27KT000

Technical Details

• Series:MLF
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Type:Multilayer
• Material - Core:Ferrite
• Inductance:270 nH
• Tolerance:±10%
• Current Rating (Amps):100 mA
• Current - Saturation (Isat):-
• Shielding:Shielded
• DC Resistance (DCR):910mOhm Max

• Q @ Freq:10 @ 25MHz
• Frequency - Self Resonant:260MHz
• Ratings:-
• Operating Temperature:-40°C ~ 85°C
• Inductance Frequency - Test:25 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:0402 (1005 Metric)
• Supplier Device Package:0402 (1005 Metric)
• Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
• Height - Seated (Max):0.022" (0.55mm)
