LQG18HH39NJ00D
TOKO / Murata- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 39NH 300MA 650 MOHM
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 164
Can ship immediately
Pricing:
- 1$0.098
Quote It
Technical Details
- Series:LQG18
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Multilayer
- Material - Core:Air
- Inductance:39 nH
- Tolerance:±5%
- Current Rating (Amps):300 mA
- Current - Saturation (Isat):-
- Shielding:-
- DC Resistance (DCR):650mOhm Max
- Q @ Freq:12 @ 100MHz
- Frequency - Self Resonant:1GHz
- Ratings:-
- Operating Temperature:-55°C ~ 125°C
- Inductance Frequency - Test:100 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603 (1608 Metric)
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.037" (0.95mm)
Related Products
FIXED IND 4.7NH 450MA 200 MOHM
- 1: $0.09800
FIXED IND 56NH 300MA 750 MOHM
- 1: $0.09800
FIXED IND 5.6NH 430MA 200 MOHM
- 1: $0.09800

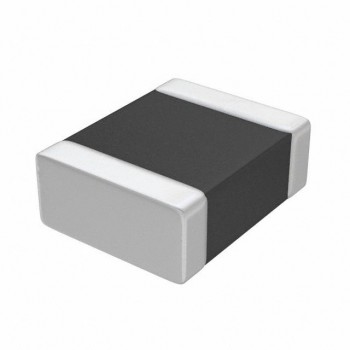

FIXED IND 1UH 3.1A 57MOHM SMD
