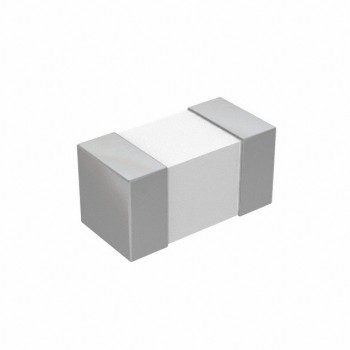

AIMC-0402HQ-4N1C-T

Technical Details

• Series:AIMC-0402HQ
• Package:Tape & Reel (TR)
• Part Status:Active
• Type:Multilayer
• Material - Core:Ceramic
• Inductance:4.1 nH
• Tolerance:±0.2nH
• Current Rating (Amps):650 mA
• Current - Saturation (Isat):-
• Shielding:Unshielded
• DC Resistance (DCR):120mOhm Max

• Q @ Freq:20 @ 250MHz
• Frequency - Self Resonant:6GHz
• Ratings:-
• Operating Temperature:-55°C ~ 125°C
• Inductance Frequency - Test:250 MHz
• Features:-
• Mounting Type:Surface Mount
• Package / Case:0402 (1005 Metric)
• Supplier Device Package:0402 (1005 Metric)
• Size / Dimension:0.039" L x 0.024" W (1.00mm x 0.60mm)
• Height - Seated (Max):0.026" (0.65mm)
