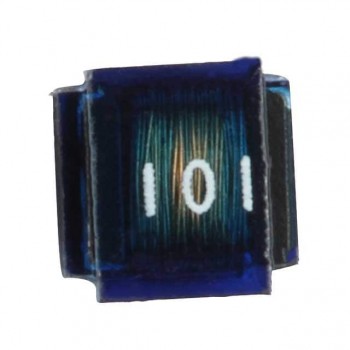

WCL2520-101-R
PowerStor (Eaton)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 100UH 40MA 11 OHM SMD
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
- 1$0.099
Quote It
Technical Details
- Series:WCL2520
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ceramic
- Inductance:100 µH
- Tolerance:±5%
- Current Rating (Amps):40 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):11Ohm Max
- Q @ Freq:8 @ 796kHz
- Frequency - Self Resonant:4.5MHz
- Ratings:-
- Operating Temperature:-40°C ~ 85°C
- Inductance Frequency - Test:796 kHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1008 (2520 Metric)
- Supplier Device Package:1008
- Size / Dimension:0.115" L x 0.110" W (2.92mm x 2.79mm)
- Height - Seated (Max):0.083" (2.10mm)
