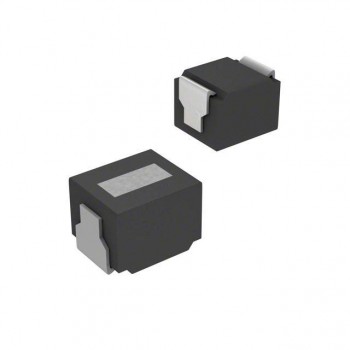

CM322522-1R5JL
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.5UH 210MA 750MOHM SM
- CategoryFixed Inductors
- Datasheet CM322522-1R5JL Datasheet
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
- 1$0.1006
- 10,000$0.07847
Quote It
Technical Details
- Series:CM322522
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1.5 µH
- Tolerance:±5%
- Current Rating (Amps):210 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):750mOhm Max
- Q @ Freq:30 @ 7.96MHz
- Frequency - Self Resonant:90MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:7.96 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):0.087" (2.20mm)
