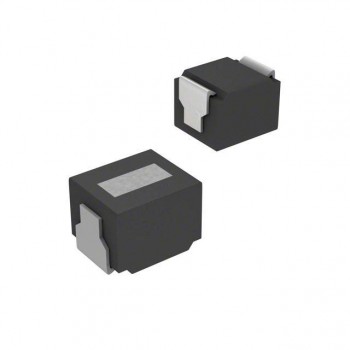

CM322522-180JL
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 18UH 110MA 3.3 OHM SMD
- CategoryFixed Inductors
- Datasheet CM322522-180JL Datasheet
-
ECAD Model
- Share
In Stock: 117
Can ship immediately
Pricing:
- 1$0.1006
- 10,000$0.07847
Quote It
Technical Details
- Series:CM322522
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:18 µH
- Tolerance:±5%
- Current Rating (Amps):110 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):3.3Ohm Max
- Q @ Freq:30 @ 2.52MHz
- Frequency - Self Resonant:27MHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:2.52 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:Nonstandard
- Supplier Device Package:-
- Size / Dimension:0.126" L x 0.098" W (3.20mm x 2.50mm)
- Height - Seated (Max):0.087" (2.20mm)
