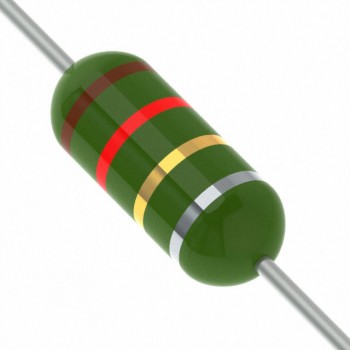

77F1R5K-TR-RC
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 1.5UH 830MA 200MOHM TH
- CategoryFixed Inductors
- Datasheet 77F1R5K-TR-RC Datasheet
-
ECAD Model
- Share
In Stock: 187
Can ship immediately
Pricing:
- 1$0.1008
- 5,000$0.099
Quote It
Technical Details
- Series:77F
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:1.5 µH
- Tolerance:±10%
- Current Rating (Amps):830 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):200mOhm Max
- Q @ Freq:50 @ 7.96MHz
- Frequency - Self Resonant:131MHz
- Ratings:-
- Operating Temperature:-55°C ~ 105°C
- Inductance Frequency - Test:7.96 MHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Axial
- Supplier Device Package:-
- Size / Dimension:0.157" Dia x 0.410" L (3.99mm x 10.41mm)
- Height - Seated (Max):-
