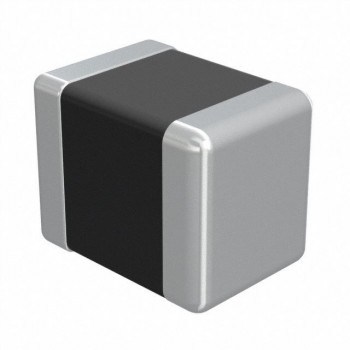

CB2518T2R2MV
TAIYO YUDEN
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 2.2UH 1A 117 MOHM SMD
- CategoryFixed Inductors
- Datasheet CB2518T2R2MV Datasheet
-
ECAD Model
- Share
In Stock: 128
Can ship immediately
Pricing:
- 1$0.10782
- 2,000$0.10782
- 4,000$0.10183
- 6,000$0.09584
- 10,000$0.09285
- 50,000$0.08686
- 100,000$0.08386
Quote It
Technical Details
- Series:CB
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:2.2 µH
- Tolerance:±20%
- Current Rating (Amps):1 A
- Current - Saturation (Isat):510mA
- Shielding:Unshielded
- DC Resistance (DCR):117mOhm Max
- Q @ Freq:-
- Frequency - Self Resonant:68MHz
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:7.96 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:1007 (2518 Metric)
- Supplier Device Package:1007 (2518 Metric)
- Size / Dimension:0.098" L x 0.071" W (2.50mm x 1.80mm)
- Height - Seated (Max):0.079" (2.00mm)
