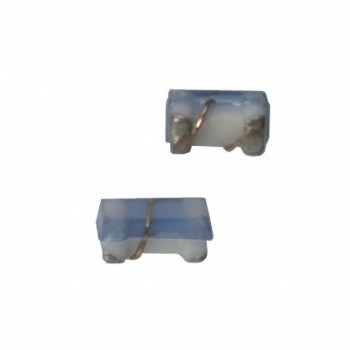

PE-0402CD100JTT
PulseLarsen Antenna
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 10NH 480MA 195 MOHM
- CategoryFixed Inductors
- Datasheet PE-0402CD100JTT Datasheet
-
ECAD Model
- Share
In Stock: 182
Can ship immediately
Pricing:
- 1$0.1085
- 6,000$0.1085
Quote It
Technical Details
- Series:0402CD
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:Ceramic
- Inductance:10 nH
- Tolerance:±5%
- Current Rating (Amps):480 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):195mOhm
- Q @ Freq:21 @ 250MHz
- Frequency - Self Resonant:3.9GHz
- Ratings:-
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:250 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402 (1005 Metric)
- Size / Dimension:0.047" L x 0.026" W (1.19mm x 0.66mm)
- Height - Seated (Max):0.024" (0.61mm)
