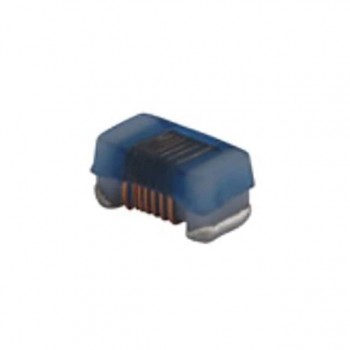

WCLA1005V1-101-R
PowerStor (Eaton)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 100NH 30MA 2.00
- CategoryFixed Inductors
-
ECAD Model
- Share
In Stock: 125
Can ship immediately
Pricing:
- 1$0.1232
Quote It
Technical Details
- Series:WCLA1005V1
- Package:Tape & Reel (TR)
- Part Status:Active
- Type:Wirewound
- Material - Core:-
- Inductance:100 nH
- Tolerance:±5%
- Current Rating (Amps):30 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):2Ohm Max
- Q @ Freq:25 @ 250MHz
- Frequency - Self Resonant:1.16GHz
- Ratings:AEC-Q200
- Operating Temperature:-40°C ~ 125°C
- Inductance Frequency - Test:250 MHz
- Features:-
- Mounting Type:Surface Mount
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402
- Size / Dimension:0.047" L x 0.026" W (1.19mm x 0.66mm)
- Height - Seated (Max):0.024" (0.60mm)
