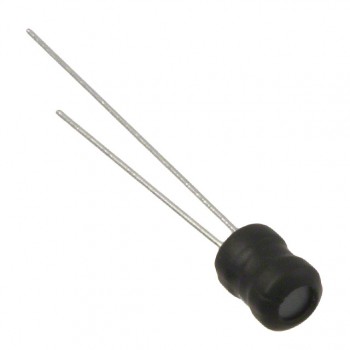

RLB0608-821KL
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFIXED IND 820UH 120MA 9.6 OHM TH
- CategoryFixed Inductors
- Datasheet RLB0608-821KL Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
- 1$0.1386
- 800$0.1386
Quote It
Technical Details
- Series:RLB
- Package:Bulk
- Part Status:Active
- Type:Wirewound
- Material - Core:Ferrite
- Inductance:820 µH
- Tolerance:±10%
- Current Rating (Amps):120 mA
- Current - Saturation (Isat):-
- Shielding:Unshielded
- DC Resistance (DCR):9.6Ohm Max
- Q @ Freq:55 @ 796kHz
- Frequency - Self Resonant:2MHz
- Ratings:-
- Operating Temperature:-40°C ~ 105°C
- Inductance Frequency - Test:796 kHz
- Features:-
- Mounting Type:Through Hole
- Package / Case:Radial, Vertical Cylinder
- Supplier Device Package:-
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.295" (7.50mm)
